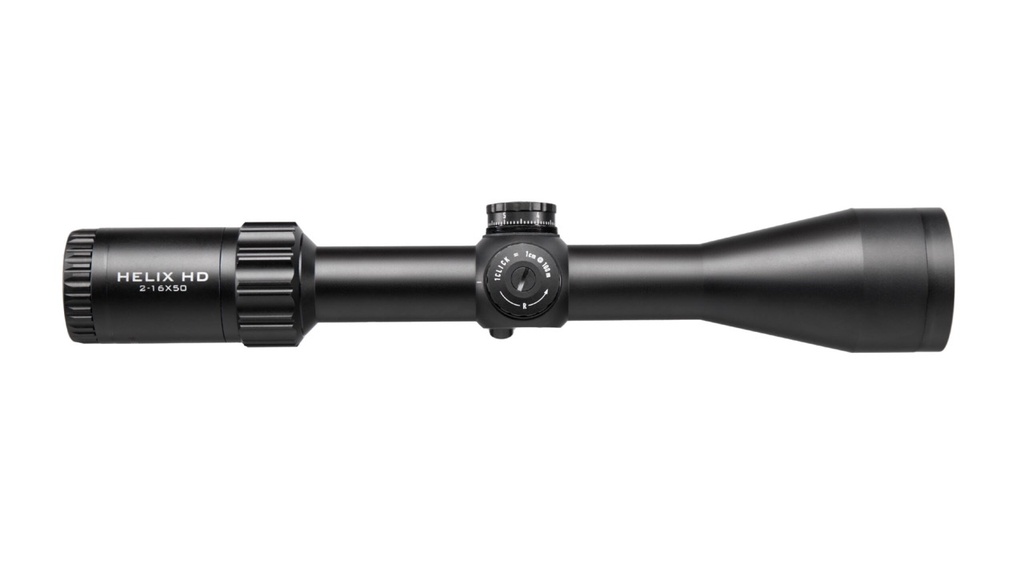

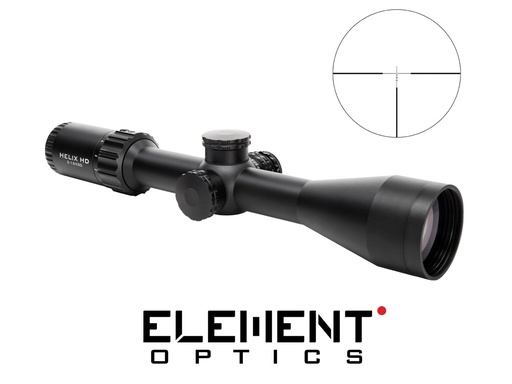

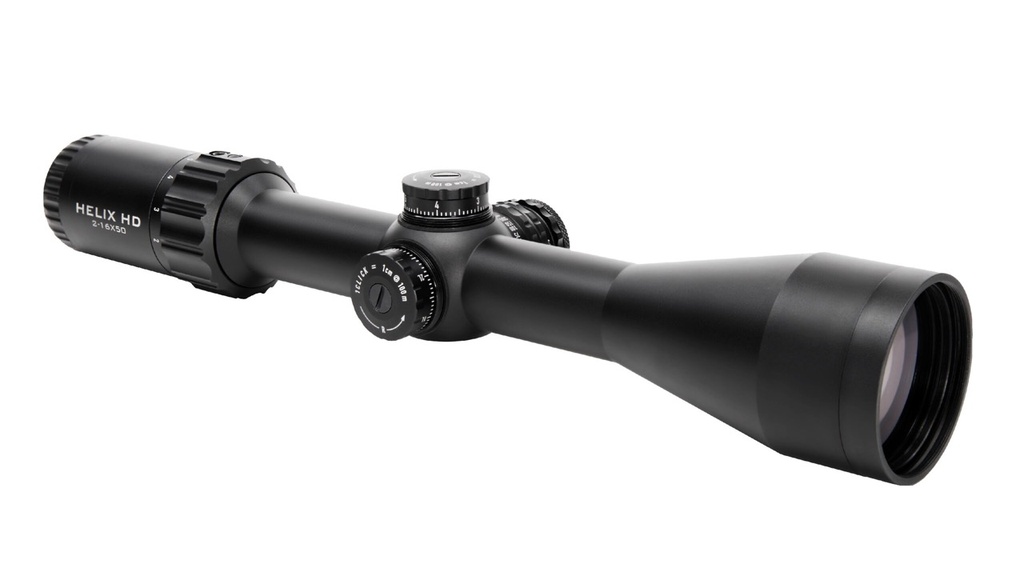

Element Optics Helix HD 2-16X50 (RAPTR MRAD, SFP)
SKU: EO-HLHD50052
Element Optics has designed the HELIX in a way that puts the important things first: clear glass, smart reticle, innovative features and a turret system superior to other products in the same price class. The HD takes things one step further, with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. They’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that critical shot, and if something goes wrong, a Platinum Lifetime Warranty has you covered!
| Element Optics Model: Helix HD |
Features
- 30mm Main Body Tube
- 8x Zoom Optical System
- Compact, Lightweight design

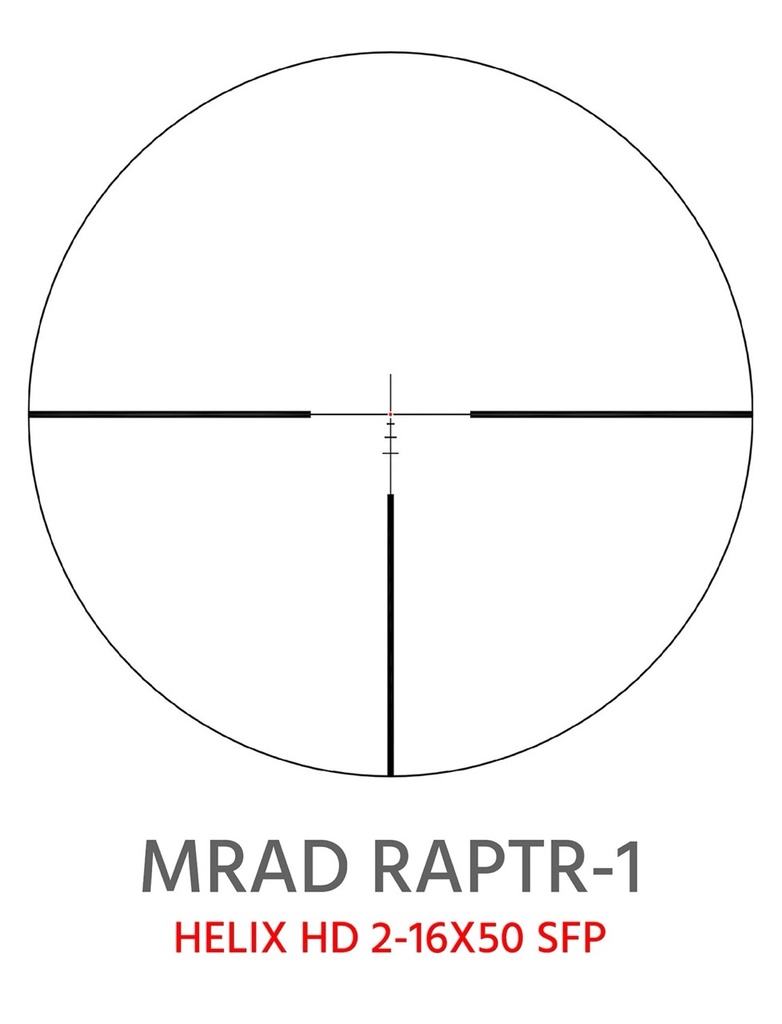

- Second Focal Plane Reticle
- Aircraft Grade Aluminum
- Side Parallax: 10m-Infinity
- Fully Multi-Coated Lenses with HD Glass
- Capped, Resettable Turrets
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth, ‘Cheat Sheet’ Stickers & Clear Lens Caps Included
Specifications
| MAGNIFICATION RANGE | 2-16x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8.5-3.1mm |
| EYE RELIEF | 101.6mm (4″) |
| FIELD OF VIEW | 60.2-7.49ft @ 100yds (20.2 – 2.51m @ 100m) |
| CLICK VALUE | 1/10 MRAD (6 MRAD / REV) | |
| ELEVATION ADJUSTMENT RANGE | 100 MOA | 29 MRAD |
| WINDAGE ADJUSTMENT RANGE | 45 MOA | 13 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |

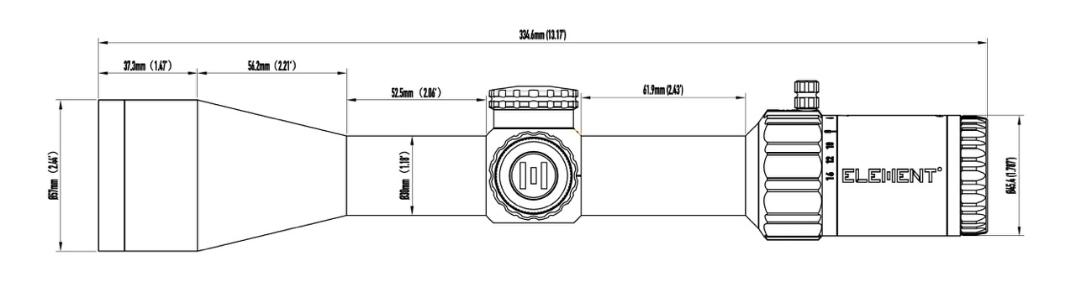

| LENGTH | 13.39 Inches | 340mm |
| WEIGHT | 25.6oz | 728g |
Info Sheets
User Manual
