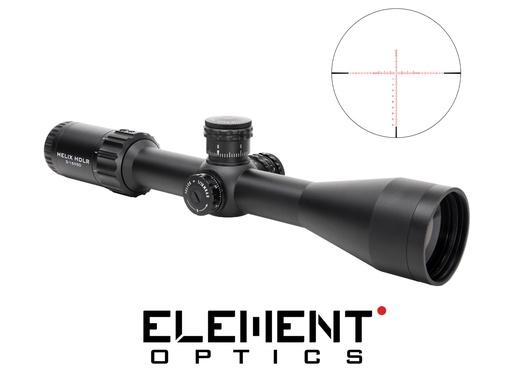

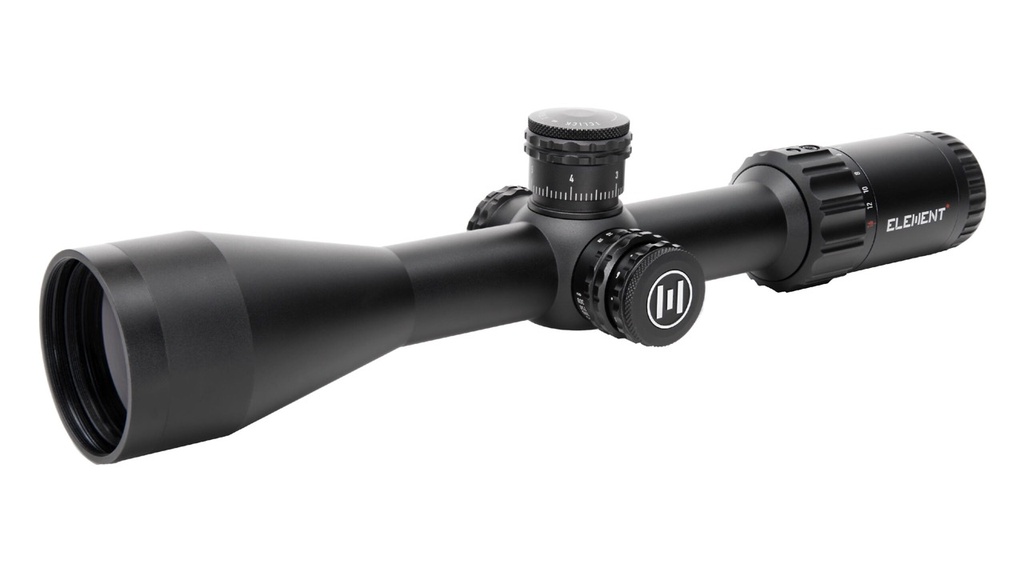

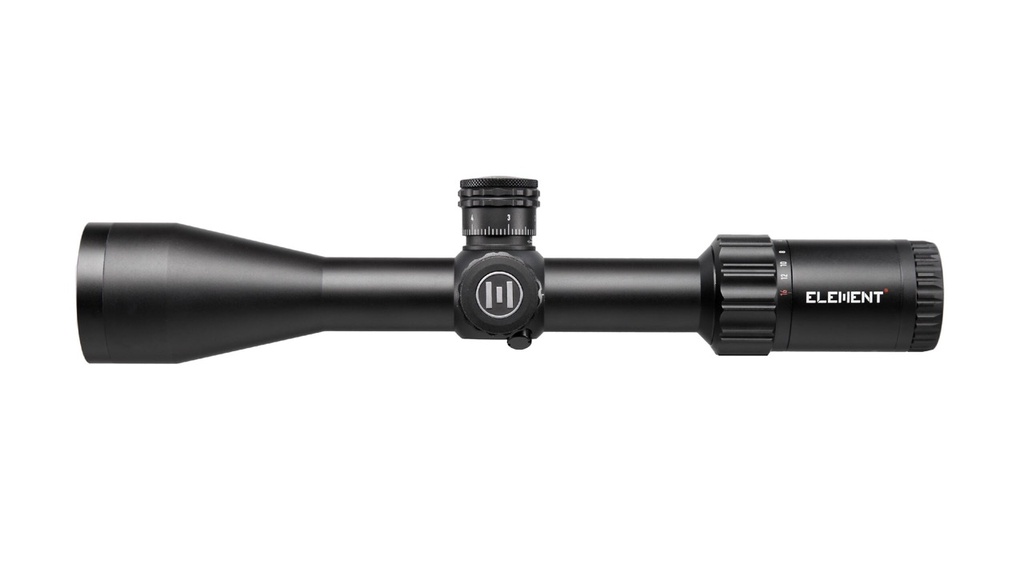

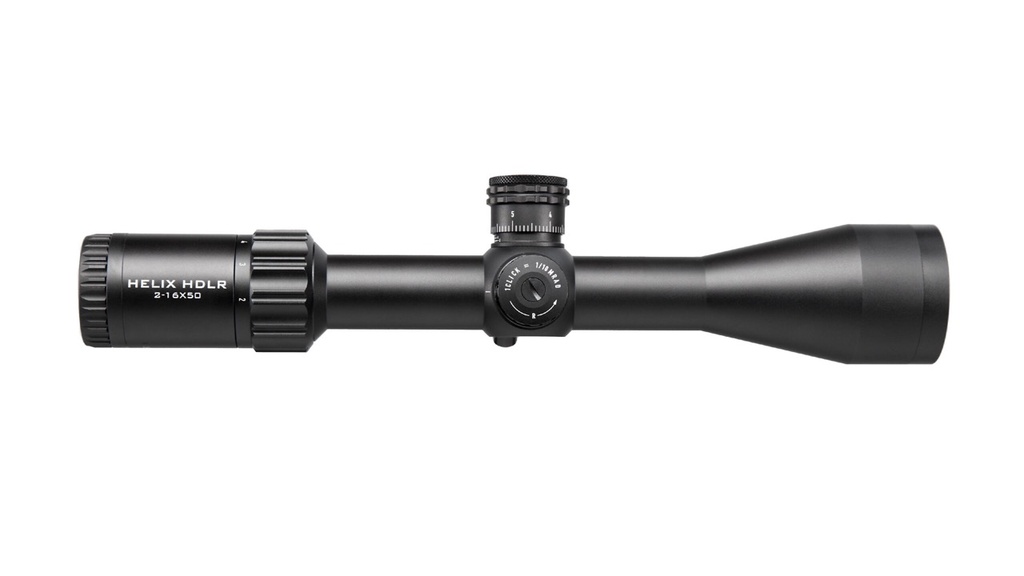

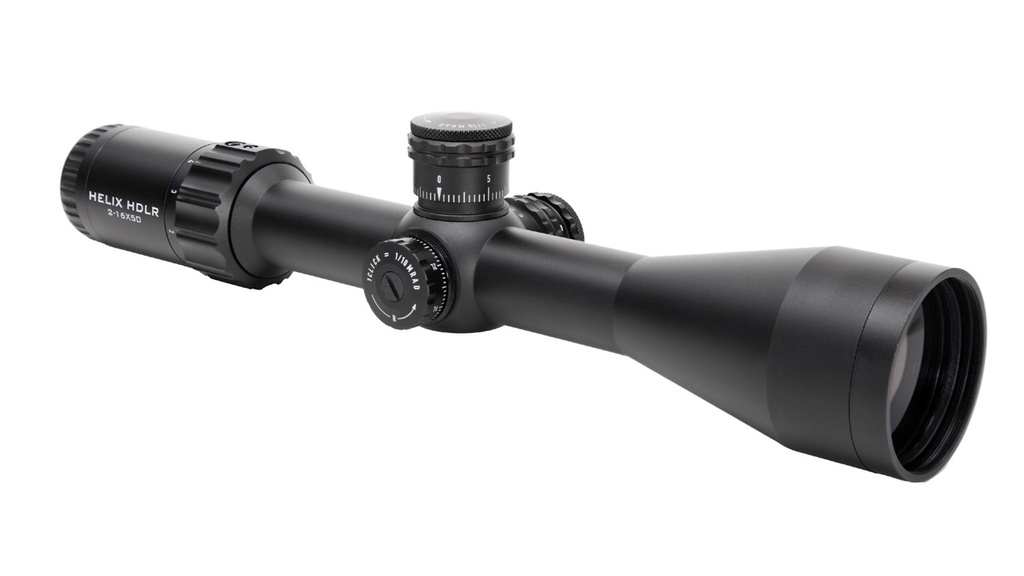

Element Optics Helix HDLR 2-16X50 (MOA APR-1C)
SKU: EO-HLHDLR50054
The Helix HDLR (Long Range) model steps it up another notch with HD Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. And, they’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. This is on top of Helix’s core features which include clear glass, smart reticle, innovative design, and a turret system superior to other products in the same price class. Further, they’ve kept the ever popular Tool-Free system and Zero-Stop on the Elevation turret for ease of use when dealing for extended ranges, but have capped the windage for a more hunter-friendly, compact feel.
| Element Optics Model: Helix HD |
Features
- 30mm Main Body Tube
- 8x Zoom Optical System
- Compact, Lightweight design

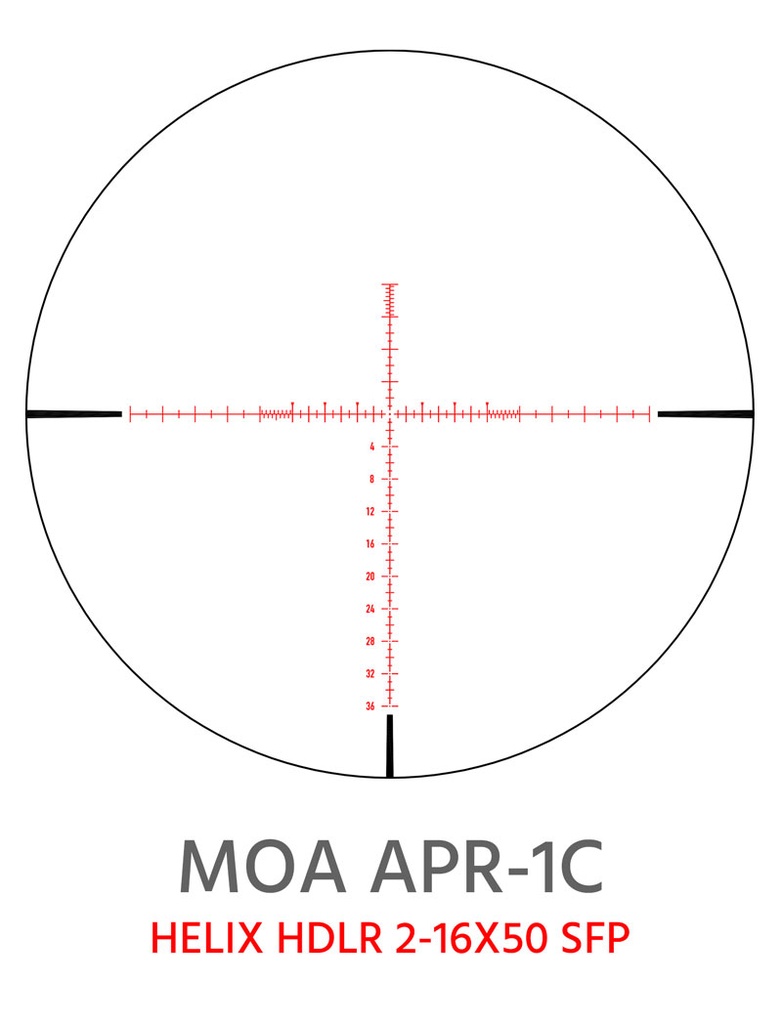

- Second Focal Plane Reticle
- Aircraft Grade Aluminum
- Side Parallax: 10m-Infinity
- Fully Multi-Coated Lenses with HD Glass
- Tool-Free Exposed Elevation Turret, Capped Windage Turret
- Zero Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Lens Caps Included
Specifications
| MAGNIFICATION RANGE | 2-16x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8.5-3.1mm |
| EYE RELIEF | 101.6mm (4”) |
| FIELD OF VIEW | 60.2-7.49ft @ 100yds (20.2 – 2.51m @ 100m) |
| CLICK VALUE | 1/10 MRAD (6 MRAD / REV) | |
| ELEVATION ADJUSTMENT RANGE | 100 MOA | 29 MRAD |
| WINDAGE ADJUSTMENT RANGE | 45 MOA | 13 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |

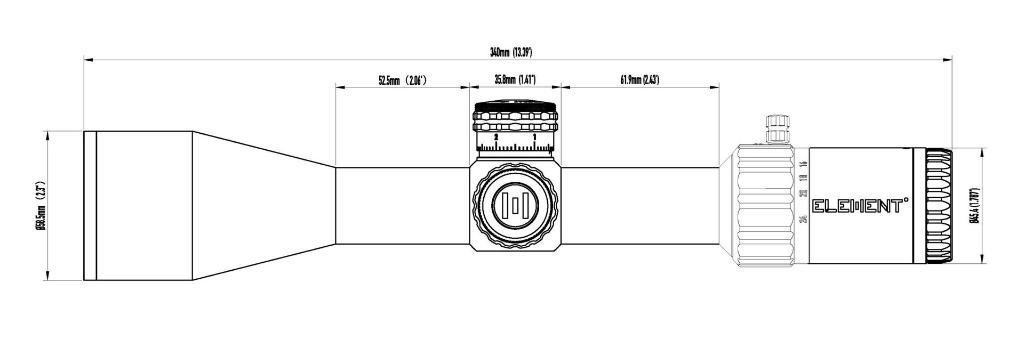

| LENGTH | 13.39 Inches | 340mm |
| WEIGHT | 27.1oz | 770g |
