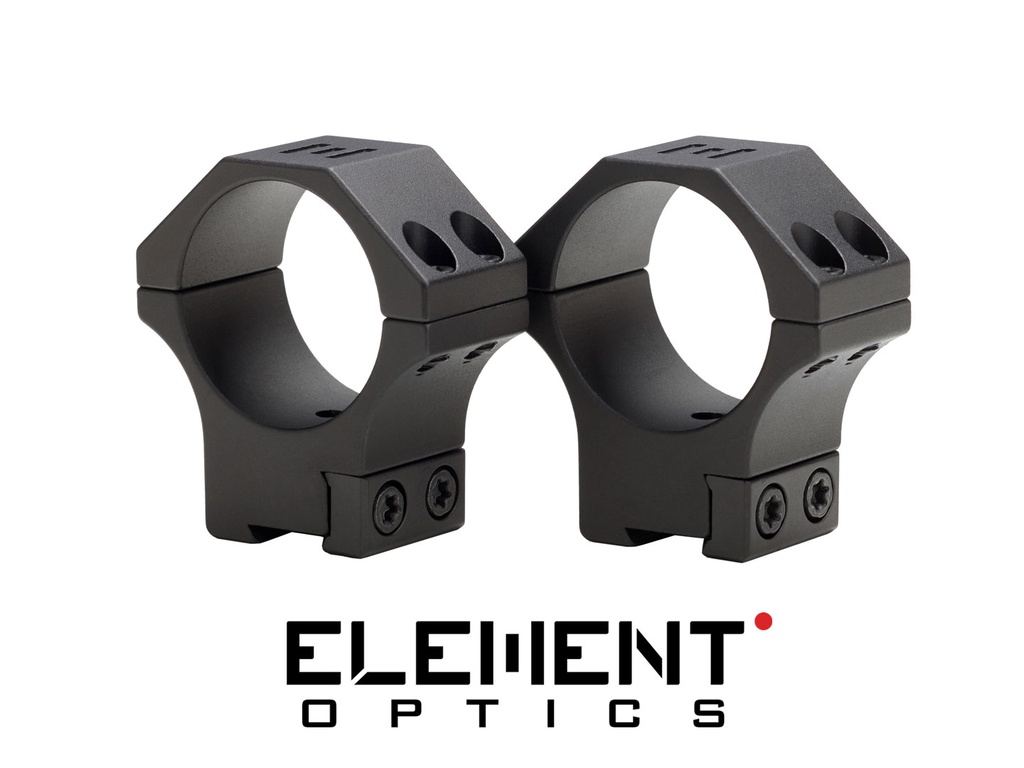

Element Optics XT Mounts (1", High, Dovetail)
SKU: EO-XT54015
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. We’ve designed the XT Mounts to be structurally solid, with looks to complement the sleekest of rifle setups.
These are available in both dovetail and picatinny, for 30mm and 1” body tubes, and in a variety of height options.
*Image for illustrative purposes.
Specifications
| MODEL | 1 ” Dovetail L | 1 ” Dovetail M | 1 ” Dovetail H | 30mm Dovetail M | 30mm Dovetail H | 30mm Picatinny L | 30mm Picatinny M | 30mm Picatinny LH |
| HEIGHT | 22.7mm (0.97”) | 26.7mm (1.05”) | 31.7mm (1.25”) | 27.2mm (1.07”) | 32.2mm (1.27”) | 21.9mm (0.86”) | 25mm (0.98”) | 28.9mm (1.14”) |
| WEIGHT (PAIR) | 72.2g (2.55oz) | 83.6g (2.95oz) | 96.2g (3.39oz) | 82.8g (2.92oz) | 96g (3.39oz) | 86.2g (3.0oz) | 98g (3.45oz) | 110g (3.88oz) |
| MATERIAL | 6061 ALUMINIUM |
| MOUNTS TO | PICATINNY | DOVETAIL |
| TOOLS REQUIRED | T15 TORX |
| MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) |
| MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) |
