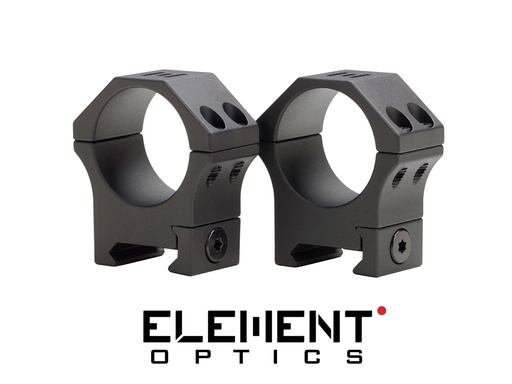

Element Optics XT Mounts Picatinny Med 34mm
SKU: EO-XT54028
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. We’ve designed the XT Mounts to be structurally solid, with looks to complement the sleekest of rifle setups.
These are available in both dovetail and Picatinny, for 30mm and 1” body tubes, and in a variety of height options.
*Image for illustrative purposes.
| Element Optics Model: XT |
Your rifle system is only as strong as its weakest point.
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. We’ve designed the XT Mounts to be structurally solid, with looks to complement the sleekest of rifle setups.
These are available in both dovetail and picatinny, for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as over-torquing rings can lead to temporary or permanent damage to the riflescope body tube and internals. Specs can be found below in the “specs” tab.
| MODEL | 1 ” Dovetail L | 1 ” Dovetail M | 1 ” Dovetail H | 30mm Dovetail M | 30mm Dovetail H | 30mm Picatinny L | 30mm Picatinny M | 30mm Picatinny LH |
| HEIGHT | 22.7mm (0.97”) | 26.7mm (1.05”) | 31.7mm (1.25”) | 27.2mm (1.07”) | 32.2mm (1.27”) | 21.9mm (0.86”) | 25mm (0.98”) | 28.9mm (1.14”) |
| WEIGHT (PAIR) | 72.2g (2.55oz) | 83.6g (2.95oz) | 96.2g (3.39oz) | 82.8g (2.92oz) | 96g (3.39oz) | 86.2g (3.0oz) | 98g (3.45oz) | 110g (3.88oz) |
| MATERIAL | 6061 ALUMINIUM |
| MOUNTS TO | PICATINNY | DOVETAIL |
| TOOLS REQUIRED | T15 TORX |
| MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) |
| MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) |
