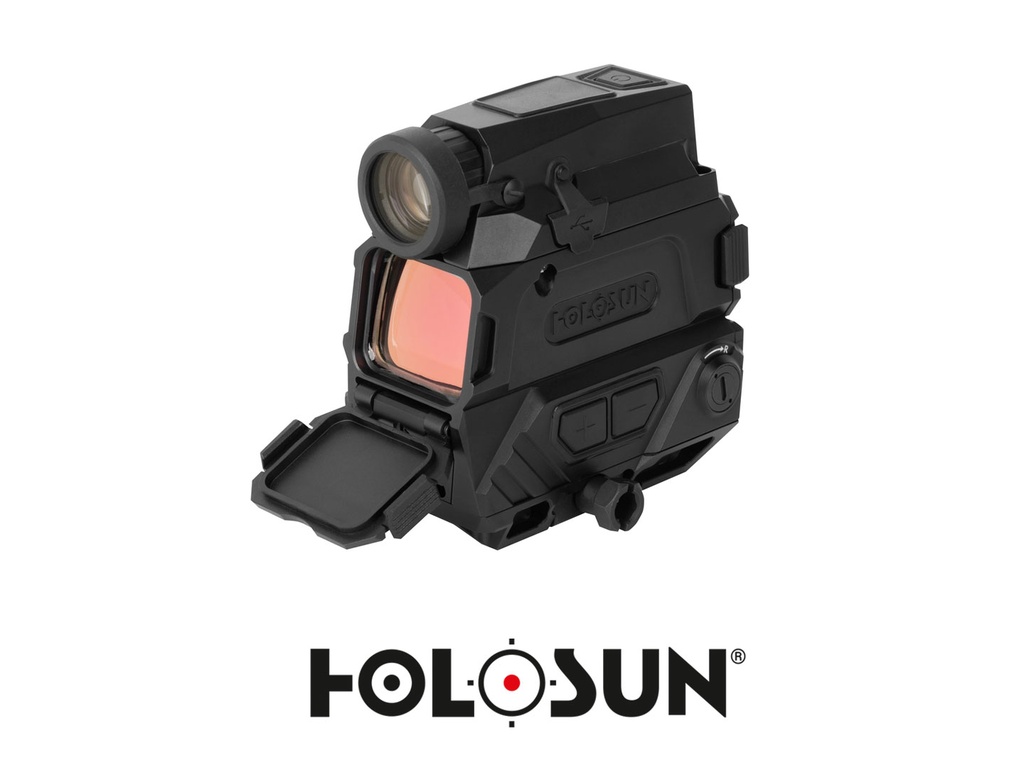

Holosun DRS-TH Thermal/Red Dot for Rifle
SKU: HO-DRS-TH
The DRS-TH combines a high-performance LED red dot sight with integrated thermal imaging to deliver enhanced target detection in any lighting condition.
Designed for professional and field use, it overlays real-time thermal data within a familiar red dot sight picture for faster identification and engagement.
→ Thermal + Red Dot Fusion
256×192 thermal sensor overlays heat signatures directly within the optic’s viewing window.
→ Multi-Reticle System
Selectable 2 MOA dot and 65 MOA circle for rapid acquisition or precision aiming.
→ Dual 18350 Battery System & Rugged Housing
Rechargeable batteries with magnetic USB charging housed in 7075-T6 aluminum with IP67 protection and Shake Awake technology.
| Holosun Model: DRS (for Rifle) |
- Thermal and Red Dot Fusion System
Combines a 256×192 thermal sensor with Holosun’s Multi Reticle System, allowing a thermal overlay with a precision red dot sight picture. - Multi Reticle System (MRS)
Selectable 2 MOA dot, 65 MOA circle, or circle dot combination provides flexible aiming solutions for both speed and precision. - Multiple Thermal Image Modes
Selectable White Hot, Black Hot, Outline, and Highlight modes optimize target detection in varying environments and lighting conditions. - High Resolution OLED Display
1024×768 OLED display with a 50 FPS refresh rate provides smooth imaging and clear thermal visualisation. - Thermal Digital Zoom
Selectable 1x, 3x, and 5x digital zoom allows improved target identification and engagement at extended distances. - Integrated Video Recording
Built in recording system allows users to capture and review critical moments directly from the optic. - Dual Rechargeable Battery System
Powered by two removable 18350 batteries delivering up to 10 hours of thermal runtime and extended red dot operation. - Magnetic USB Charging Interface
Magnetic USB connection provides convenient charging and data transfer without removing the optic. - Shake Awake Red Dot System
Motion activated illumination powers the red dot instantly when movement is detected to ensure the optic is always ready. - Rugged 7075 Aluminium Housing
Precision machined 7075 T6 aluminium construction with IP67 waterproof protection and 1000G vibration resistance for demanding environments.
Fitment
Direct Mount
Picatinny
Reflex Sight Data
|
Specification |
Value |
|---|---|
|
Light Source |
LED |
|
Wavelength |
650nm |
|
Reticle |
2 MOA Dot & 65 MOA Circle |
|
Selectable Reticle |
Yes |
|
Solar Power |
No |
|
Shake Awake Technology |
Yes |
|
Memory Mode |
Yes |
|
Parallax |
No |
|
Unlimited Eye Relief |
Yes |
|
Magnification |
1x |
|
Multi-Coatings |
Yes |
|
Brightness Settings |
8 Daylight & 4 Night Vision |
Thermal Data
|
Specification |
Value |
|---|---|
|
MRTD |
<50mK |
|
Reticle |
Cross & T Style |
|
Zoom |
1x, 3x, 5x |
|
Lens Focus |
25mm |
|
Aperture |
F1.1 |
|
Focus Range |
5m – Infinity |
|
Field of View |
7.2° × 5.3° |
|
Spectral Range |
8–14µm |
|
Sensor Resolution |
256 × 192 |
|
OLED Resolution |
1024 × 768 |
|
Frame Rate |
50FPS |
|
Video Recording Storage |
Yes |
|
Image Mode |
White Hot, Highlight, Edge Detection |
|
Battery |
2 × 18350 |
|
Battery Life |
Observation: 10 hrs / Full Function: 8 hrs |
|
External Charging |
5V / 1A (Magnetic) |
Mechanical Data
|
Specification |
Value |
|---|---|
|
Housing Material |
7075 T6 Aluminum |
|
Surface Finish |
Anodized |
|
Housing Color |
Black |
|
Adjustment Per Click |
0.5 MOA |
|
W&E Travel Range |
±50 MOA |
|
Storage Temperature |
-40°C to 70°C |
|
Working Temperature |
-20°C to 50°C |
|
Submersion Rating |
IP67 |
|
Vibration Rating |
1000G |
Physical Data
|
Specification |
Value |
|---|---|
|
Window Size |
1.25” × 0.98” |
|
Body Dimensions |
3.7” × 2.2” × 3.5” |
|
Body Weight |
18 oz |
|
Central Height Mount |
1.72” |
|
Mount Weight |
2.3 oz |
- 2x 18350
- Charging & Data Cable (USB-A to Magnetic Port)
- Lens Cloth
- Multi-Tool
- Wrench
- Manual
- Warranty Card
