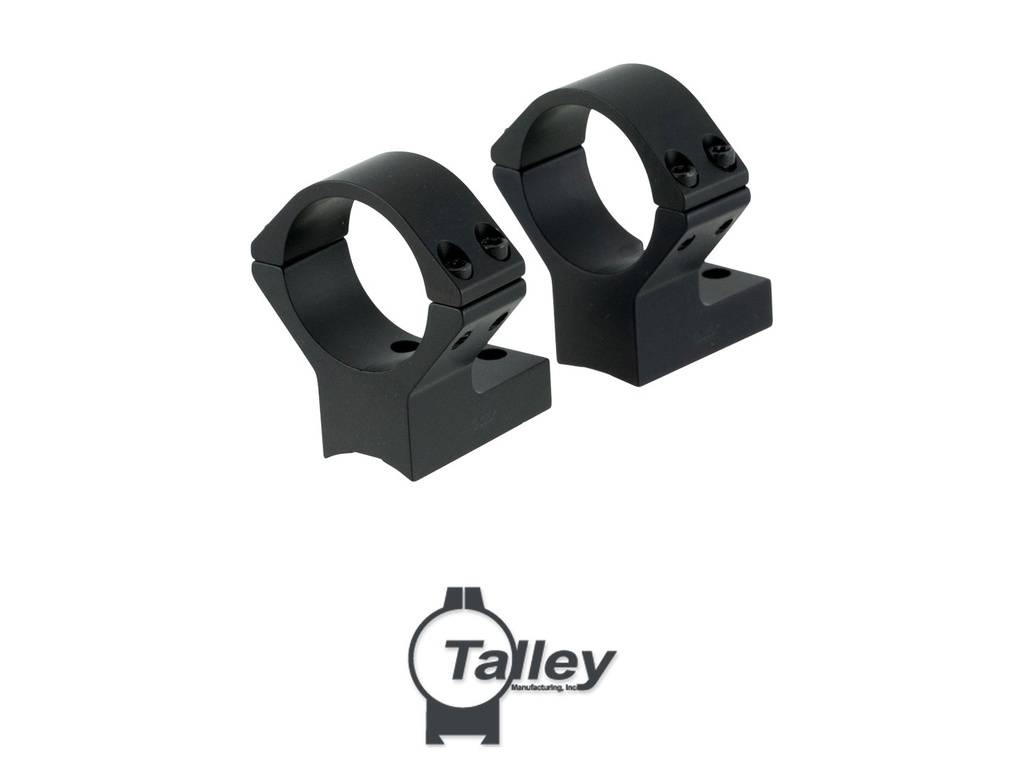

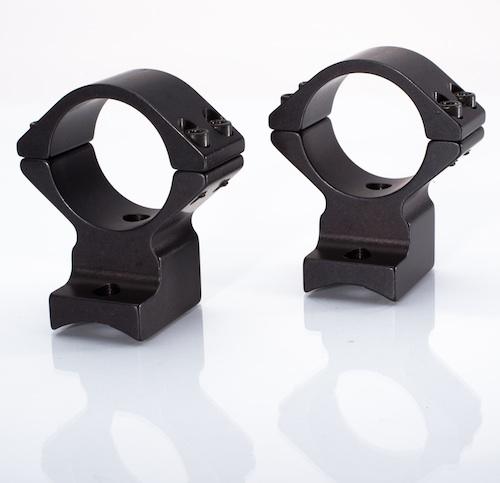

Talley 1" Alloy Lightweight Rings - Black (Low, Winchester XPR)
SKU: TL930765
Made in America, these Winchester XPR Scope Mounts made by Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Winchester XPR Rifles. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminium to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.
| Talley - By Gun Brand: Winchester |
- American Made, Lightweight Alloy Scope Mounts
- Fully CNC Machined
- High-Grade Lightweight Aircraft Aluminum
- Integrated Scope Ring and Base Design
- Lapping Not Required
- Designed to fit Winchester XPR Rifles
Winchester XPR Scope Mounts – Product Dimensions and Weights
| Ring Height | Rear Height | Front Height | Available for Main Tubes | Weight (per set) |
| Low | .504″ | .400″ | 1″ / 30MM | 2.0oz / 2.4oz |
| Medium | .604″ | .500″ | 1″ / 30MM | 2.1oz / 2.5oz |
| High | .704″ | .600″ | 1″ / 30MM | 2.2oz / 2.6oz |
1 The height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location
2 Hole spacing measured center to center.
- Front hole spacing: .860 inches (21.84mm)
- Rear hole spacing: .860 inches (21.84mm)
- Sold in pairs.
- Includes mounting screws and wrench. (8-40 x 1/4″ Screws / T-15)
What height scope rings do I need for my Winchester XPR Scope Mounts?
Simplified method of determining required scope ring height
- Using some sort of shim (i.e. coins, washers, magnets) stack up the required number of shims to achieve desired scope height.
- Verify final height does not interfere with operation of bolt handle.
- Measure the final stack of shims.
Not sure what height scope ring to get? Please any Loctite. feel free to contact our technical support team for guidance on your Winchester XPR Scope Mounts. 803-854-5700
Torque Recommendations?
- Cap Screws on Rings: 17-20 in/lb on ring cap screws. Do not exceed scope manufacturer’s allowable torque specs on main tube. Always recommended to verify with scope manufacturer allowable torques to prevent marking or damage to scope tube. Always verify with the scope manufacturer the maximum allowable torque on main tube.
- Winchester XPR Scope Mounts to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Winchester) to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over torquing.
Loctite?
- Although not always necessary, using Loctite for the screws going in the receiver is perfectly fine. We do not recommend using anything stronger than Loctite Blue 242. We do not recommend using Loctite on the ring screws. Always test fit before applying any Loctite.
