Talley Picatinny Base for Ruger American Rimfire
SKU: TLP00252758
Made in America, Talley Manufacturing’s Ruger American Rimfire Picatinny Rails are machined entirely from high grade 7000 series alloy and protected with a hard-coat anodizing to 65 Rockwell ensuring the craftsmanship of these Picatinny rails last the lifetime of your firearm. These Ruger American Rimfire Picatinny Rails are all designed and manufactured with precision to fit your firearm with the industry’s tightest manufacturing tolerances. These Pic Rails provide a mounting platform for all optics mounts that have been designed in accordance with the MIL-STD-1913 Pic Rail specifications, to include all Talley Picatinny scope mounts.

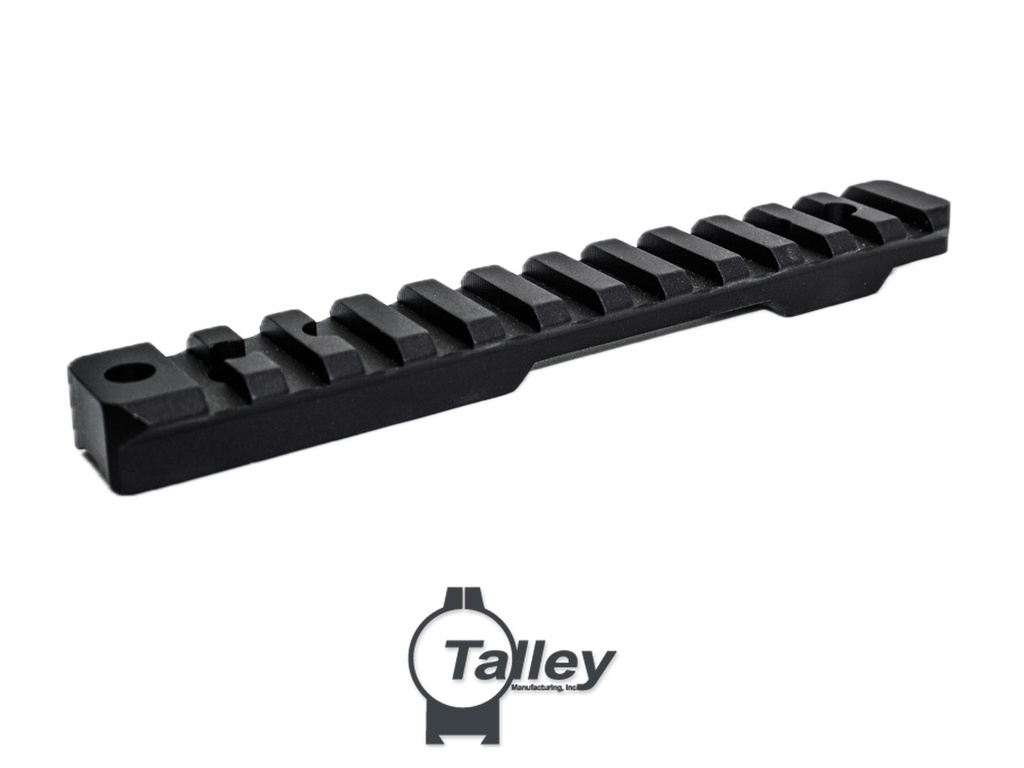

Image shown is for example only.
| Talley - By Gun Brand: Ruger |
- American Made, Lightweight 7000 series Aluminum Alloy
- Fully CNC Machined
- Hard-coat anodizing to 65 Rockwell
- Designed in accordance with the MIL-STD-1913 Pic Rail specifications
- Includes mounting screws and wrench. (1/4 6-48 Screws / T-15)
- Designed to fit Ruger American Rimfire rifles.
Ruger American Rimfire Picatinny Rail – Product Dimensions and Weights
| MOA | Rear Height1 | Hole2 1 ↔ 2 | Hole 2 ↔ 3 | Hole 3 ↔ 4 | Front Height3 | Overall Length | Weight |
| Standard | .342″ | .500″ | 2.513″ | .500″ | .342″ | 5.413″ | 1.2 oz. |
| 20MOA | .367″ | .500″ | 2.513″ | .500″ | .336″ | 5.413″ | 1.2 oz. |
1 The Rear height is measured at the rearmost edge of the rail; from the top of the action to the top of the rail.
2 Hole 1 is closest to the shooter and hole 4 is closest to the muzzle. Hole spacing measured center to center.
3 The Front Height is measured at very front of the rail; from the top of the action to the top of the rail.
Torque Recommendations?
- Ruger American Rimfire Picatinny Rail to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Ruger) to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over torquing
Loctite?
- Although not always necessary, using Loctite for the screws going in the receiver is perfectly fine. We do not recommend using anything stronger than Loctite Blue 242. We do not recommend using Loctite on the ring screws. Always test fit before applying any Loctite.
